A Schema is a generated diagram to visualize your base structure and track changes to meta information for all tables, view, fields, and relationships. Understand your Airtable base configuration and view meta changes at a glance.
In this article
- Before Creating a Schema
- How to Create A New Schema Using the Script Option
- Adding Your Schema Script Code to Airtable
- Generate a Schema Snapshot from Airtable
- Filter Your Schema
- Schema Changes
- Print Your Schema Layout
- Snapshot History
- Share
- Settings
Before Creating a Schema
Note: Once a Schema is created and connected to a base, you cannot change which base is being used for that particular Schema. You will need to create a new Schema to connect to a different base.
How to Create A New Schema Using the Script Option
- Click New Schema
- Enter a Name for your Schema
- Choose the Script Source
- Select your Airtable connection
- Select your Airtable base
Adding Your Schema Script Code to Airtable
- Once you have created a Schema using the Script option, you will be directed to the Diagram tab
- You will see a piece of JavaScript code you will need to add to your Airtable base
- Click Copy to Clipboard to copy the script code to your clipboard
- Click New Snapshot at the top right (OR Go to Airtable and open your base)
- Click the Base link
- Create a new Scripting app How to create a Scripting block
- Paste the copied script code into the Scripting block field
Generate a Schema Snapshot from Airtable
To generate a Schema Snapshot from Airtable
- Open the Scripting app containing your Schema script
- Click Run
- Click Rename Snapshot
- Name your Snapshot
- Click Next
- Click Run Snapshot
- A success message “The snapshot was created successfully.” will be displayed
- Once you have created your Snapshot, return to the On2Air: Schema dashboard

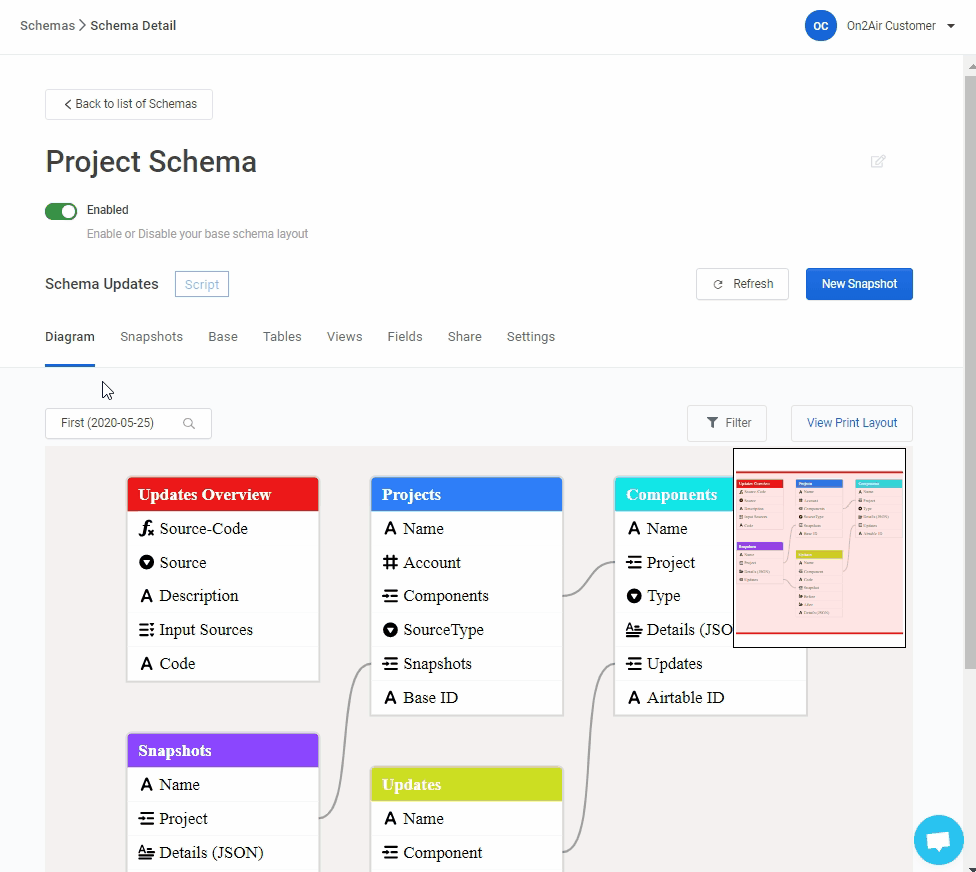

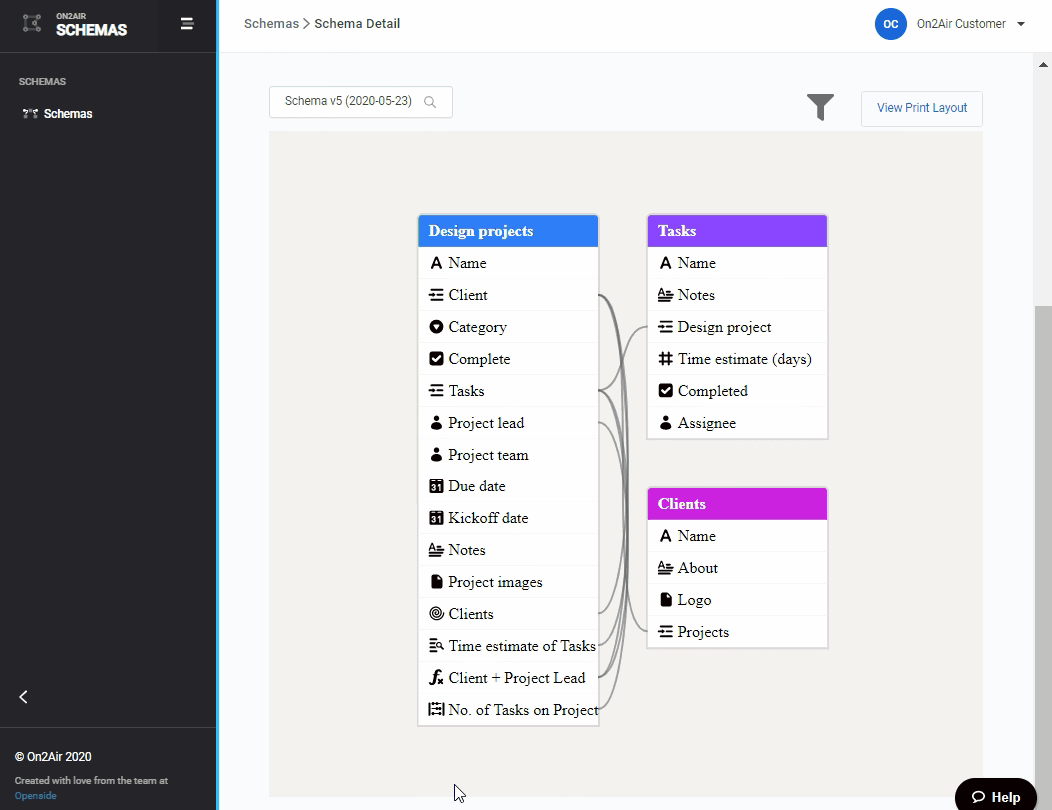

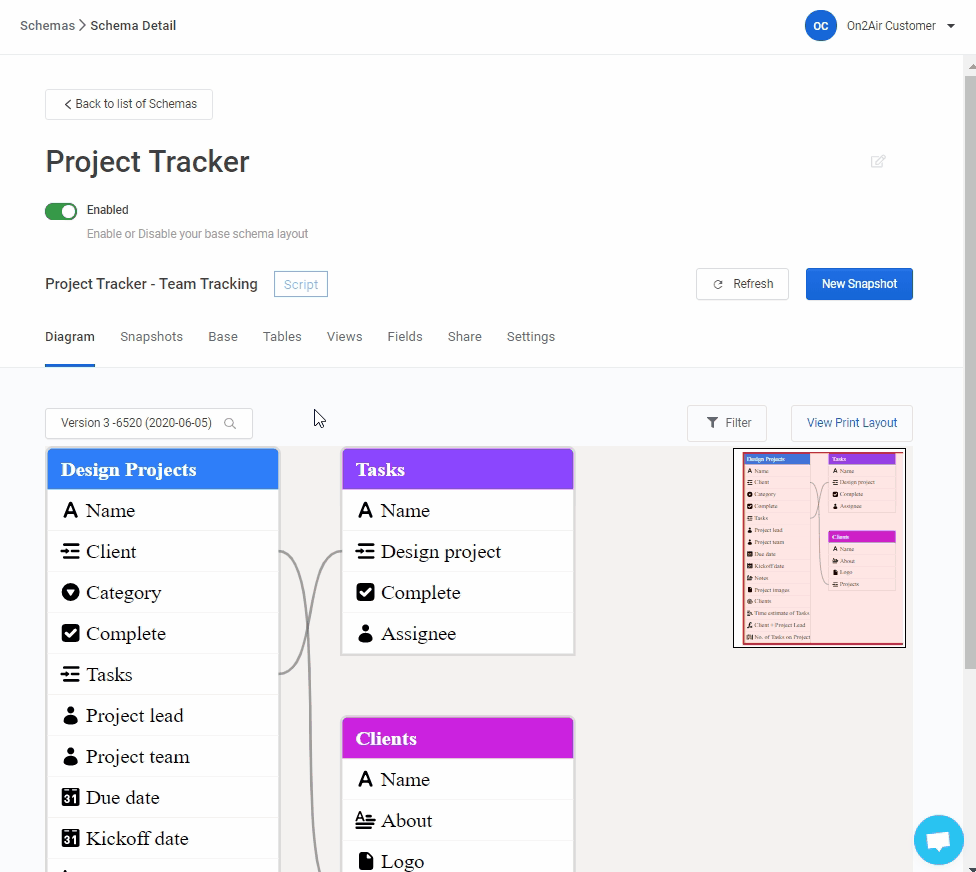

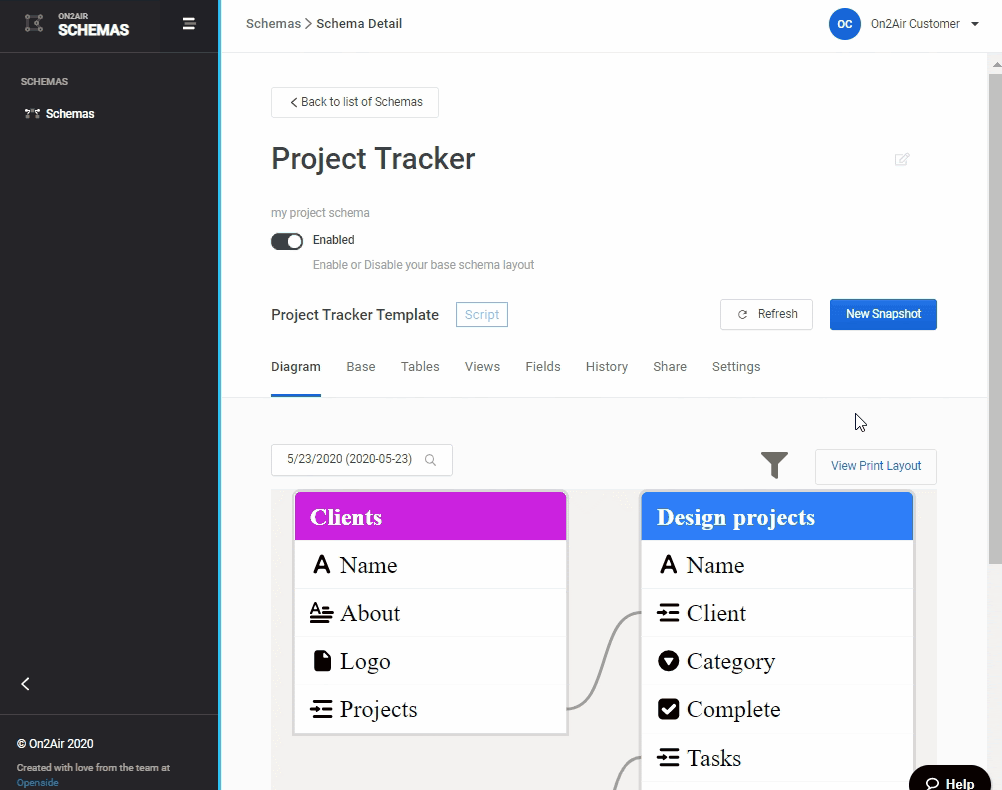

- You will now see your new Schema layout in the Diagram tab
- You can click through each tab to see the Tables, Views, and Fields
- From the Diagram tab, you can choose the dropdown to view a history of each snapshot

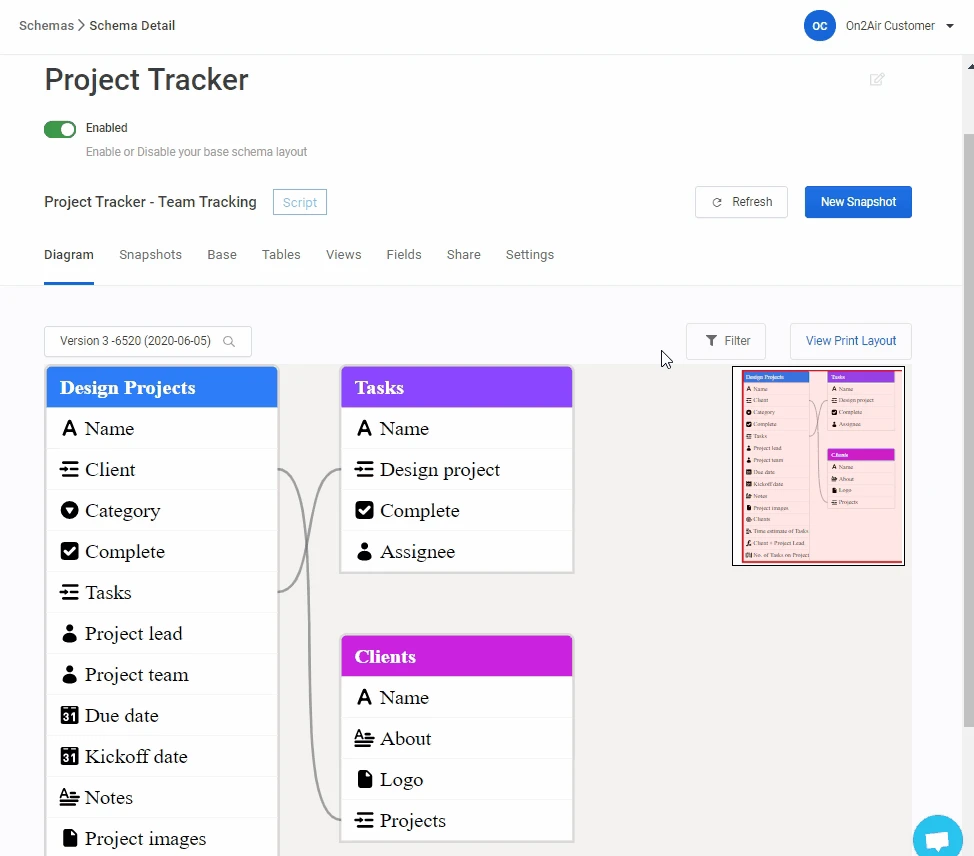

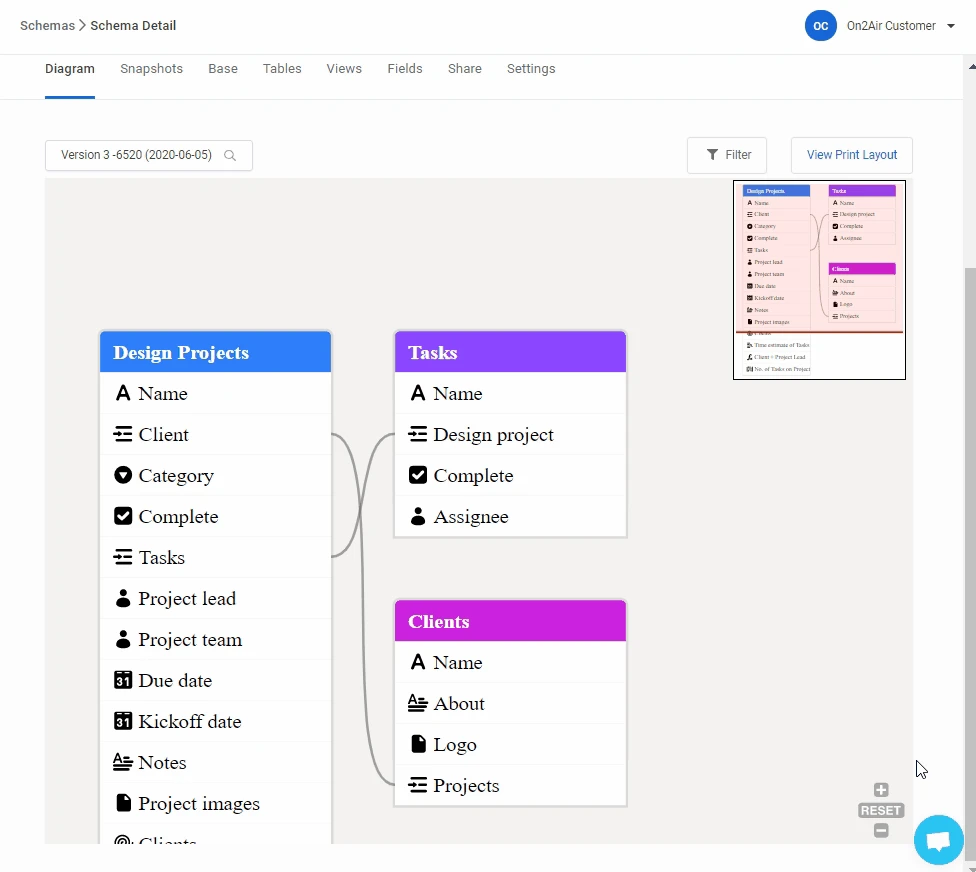

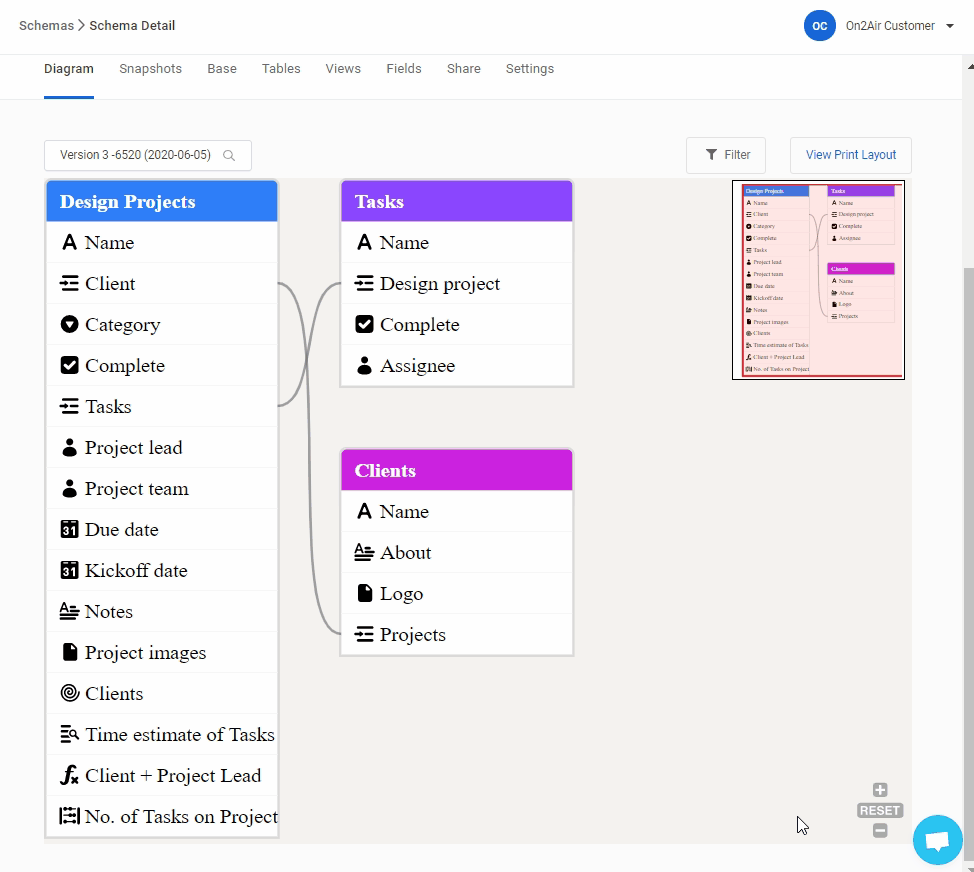

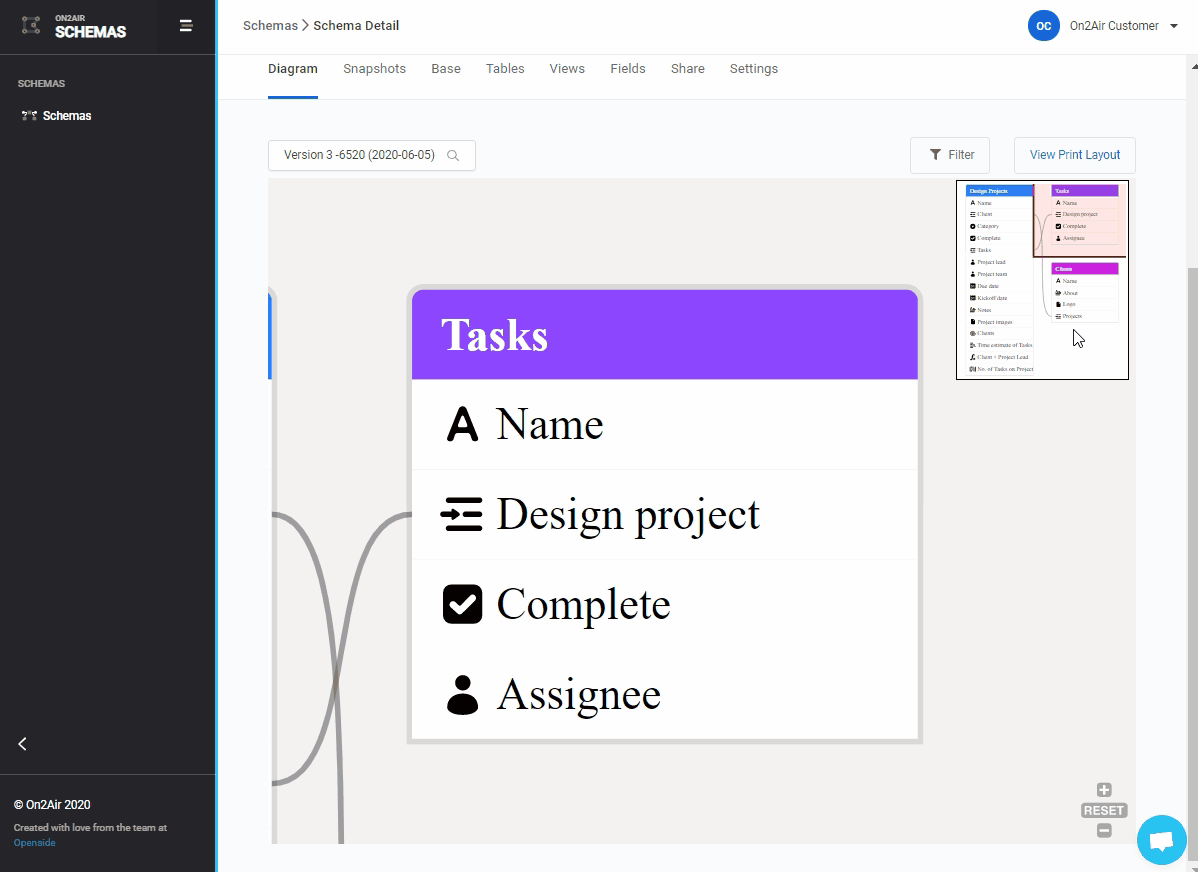

You can Zoom In(+), Zoom Out (-), or Reset the Schema View
Filter Your Schema
By Default, all Bases, Tables, Views, and Fields are included in your Schema
You can filter your Schema by
- Table
- Field Type
- Fields
- Relationships
To filter Tables, Field Types, or Fields
- Choose the Filter icon above your Schema
- Choose your Table, Field Type, or Field filter by clicking the Edit icon
- Toggle your filter On (Green) or Off (White)
- Click Done in your individual filter page
- Click Done on the entire filter page
To filter and view the connections in your Relationship field types
Available for Script Schemas
Toggle any desired Relationship field type On (Green)/ Off (White)
* Linked Records (**On** by default)
* Formulas
* Rollups
* Lookups
* Count
Each Relationship connection is displayed and highlighted by a specific color
Gray - Linked Record FieldPurple - Rollup FieldOrange - Lookup FieldBlue - Formula FieldRed - Count Field
Save Filter Settings
You can save specific filters to reference as needed
- Click the Filter icon
- Select your Filter parameters
- Click Save Filter
- Name Your Filter
- Click Done
Schema Changes
In each tab, you can see changes for each Base, Table, View, or Field
Base Tab
- Change - Type of Change
- Before - Previous name of Base
- After - New name of Base
- Updated - Snapshot Timestamp
- Snapshot - Snapshot name
Initial displays the first time the Schema was created
After changing the name of the Base
Navigate Changes
- Click Prev, Next, or a page number to navigate between the Base Changes pages
Refresh Schema
- Click Refresh to generate any new Schema updates
Tables Tab

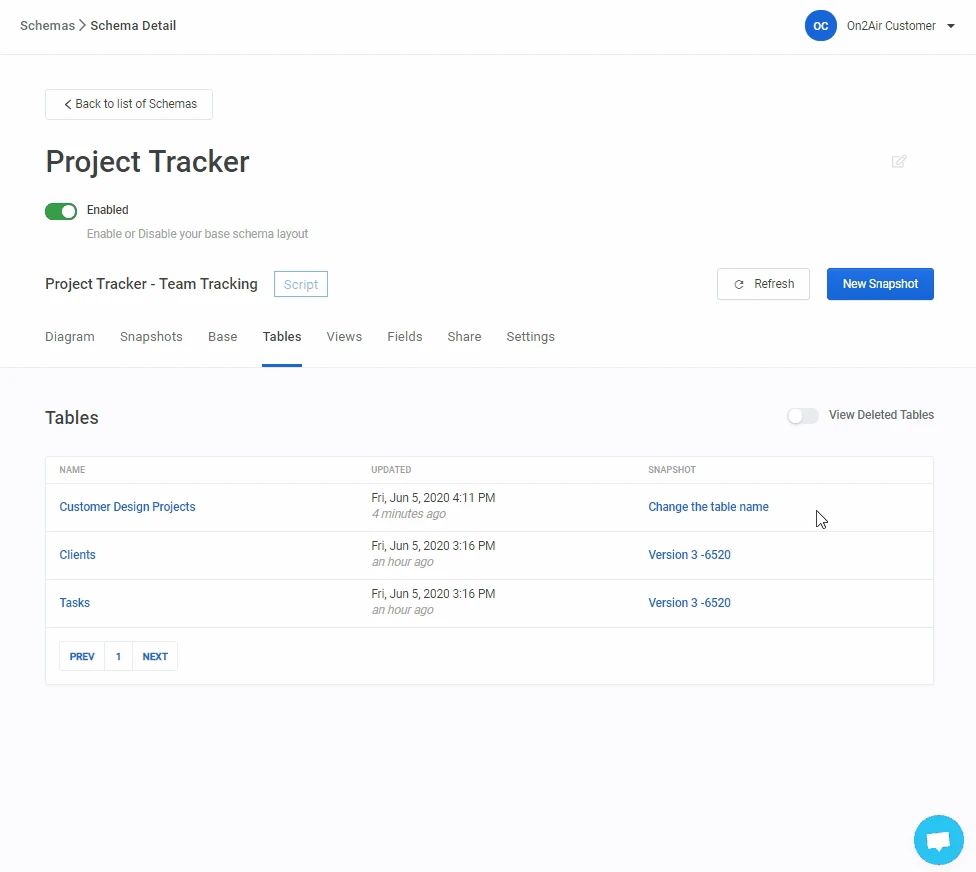

- Name - Name of Table
- Updated - Snapshot Timestamp
- Snapshot - Snapshot name
When you click a Table name, you will see any Name Changes
- Change - Type of Change
- Before - Previous Table name
- After - New Table name
- Updated - Snapshot Timestamp
- Snapshot - Snapshot name
View Deleted Tables
- Toggle View Delete Tables On (Green) to view any Tables previously deleted
Navigate Changes
- Click Prev, Next, or a page number to navigate between the Table Changes pages

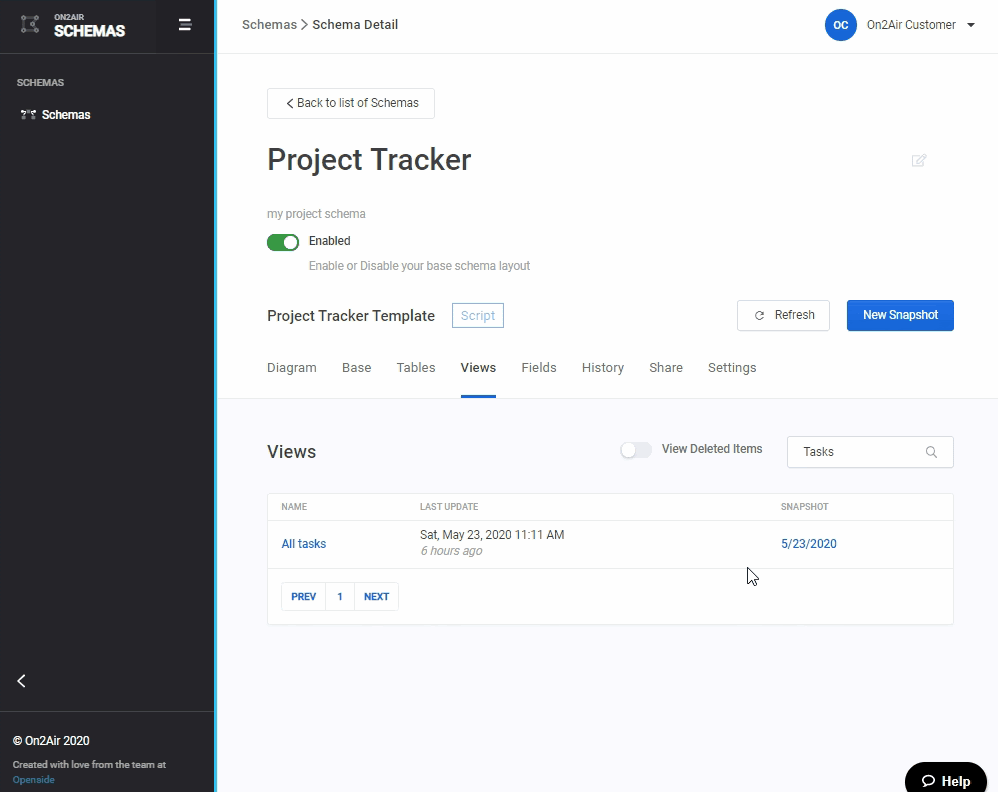

Views Tab
- Choose the Table name containing the View you want to see
In each View, you will see
- Name - Name of View
- Last Update - Snapshot timestamp
- Snapshot - Snapshot name
To see changes for a specific View, choose a View name
In each specific View, you will see
- Change - Type of Change
- Before - Previous name of View
- After - New name of View
- Updated - Snapshot Timestamp
- Snapshot - Snapshot name
View Deleted Views
- Toggle View Deleted Items On (Green) to view any Views previously deleted
Navigate Changes
- Click Prev, Next, or a page number to navigate between the View Changes pages

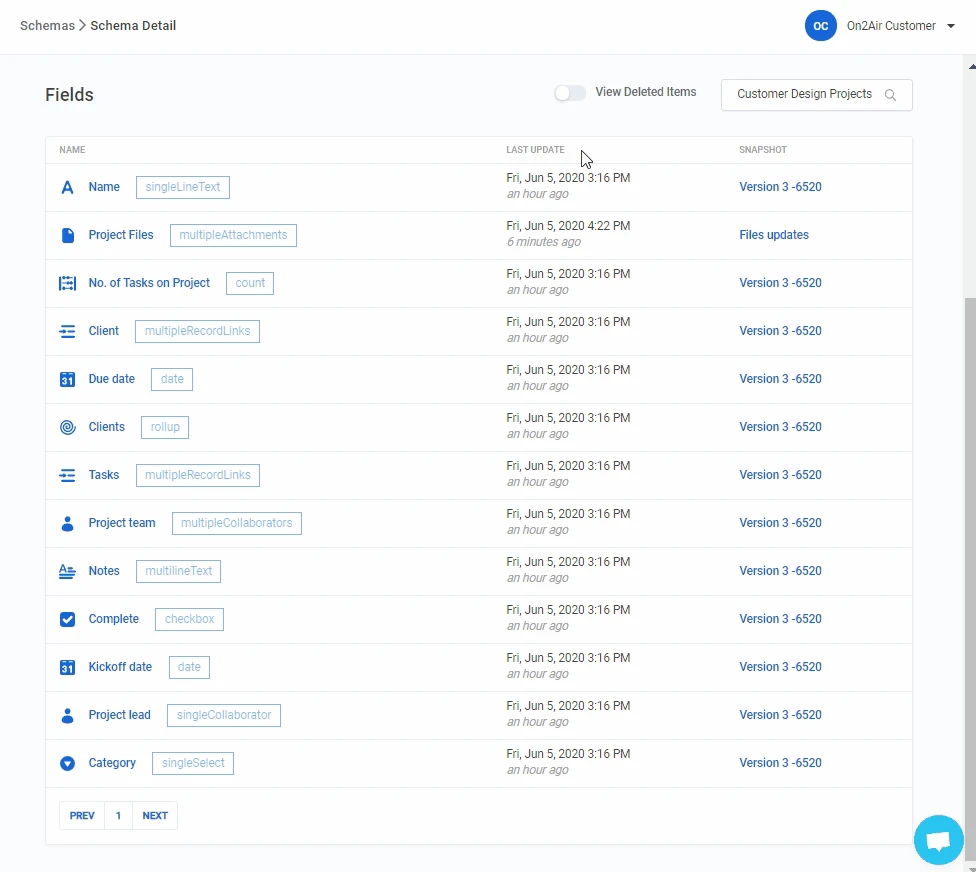

Fields Tab
- Choose the Table name containing the Fields you want to see
In each Table, you will see your Field names and types

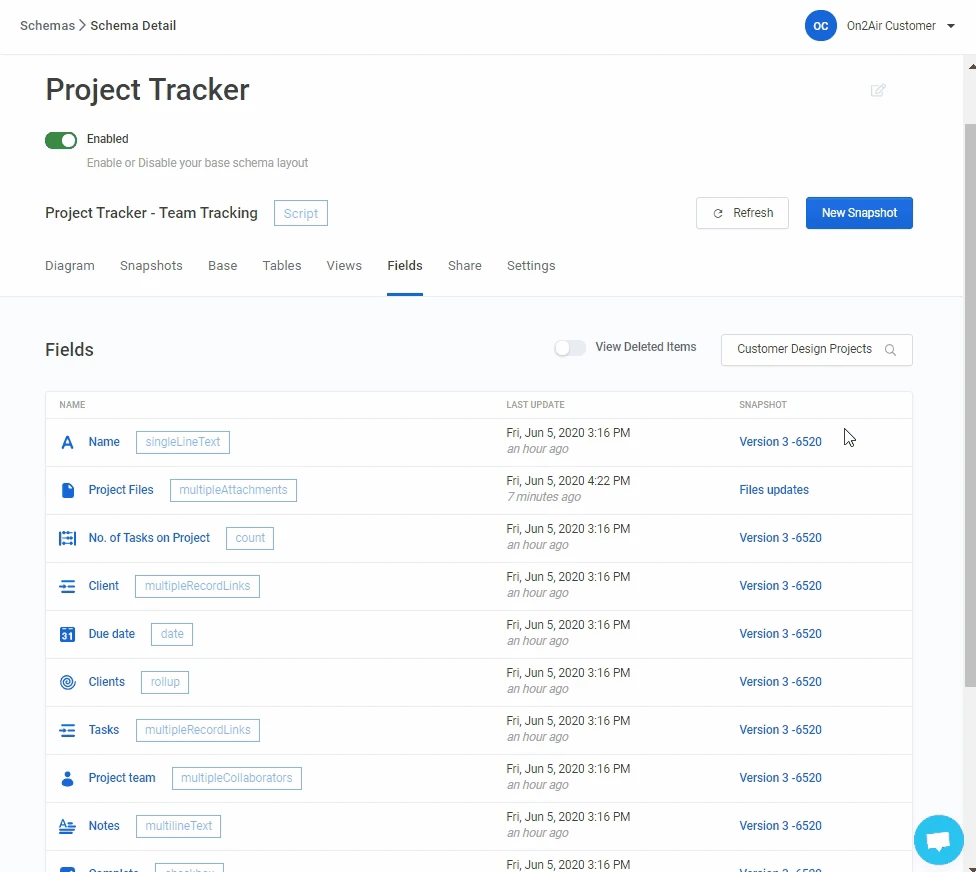

- Name - Field name and type
- Last Update - Last Updated Timestamp
- Snapshot - Snapshot name
When you click a Field name, you will see any name changes
- Change - Type of Change
- Before - Previous Field name
- After - New Field name
- Updated - Snapshot timestamp
- Snapshot - Snapshot name
View Deleted Fields
- Toggle View Deleted Items On (Green) to view any Fields previously deleted
Navigate Changes
- Click Prev, Next, or a page number to navigate between the Field Changes pages
Print Your Schema Layout
- In the Diagram tab, select your Print Layout area by clicking the Zoom In(+) or Zoom Out (-) icons
- Click View Print Layout
- A new tab with your Schema layout will open
- Choose Print from your browser
Snapshot History

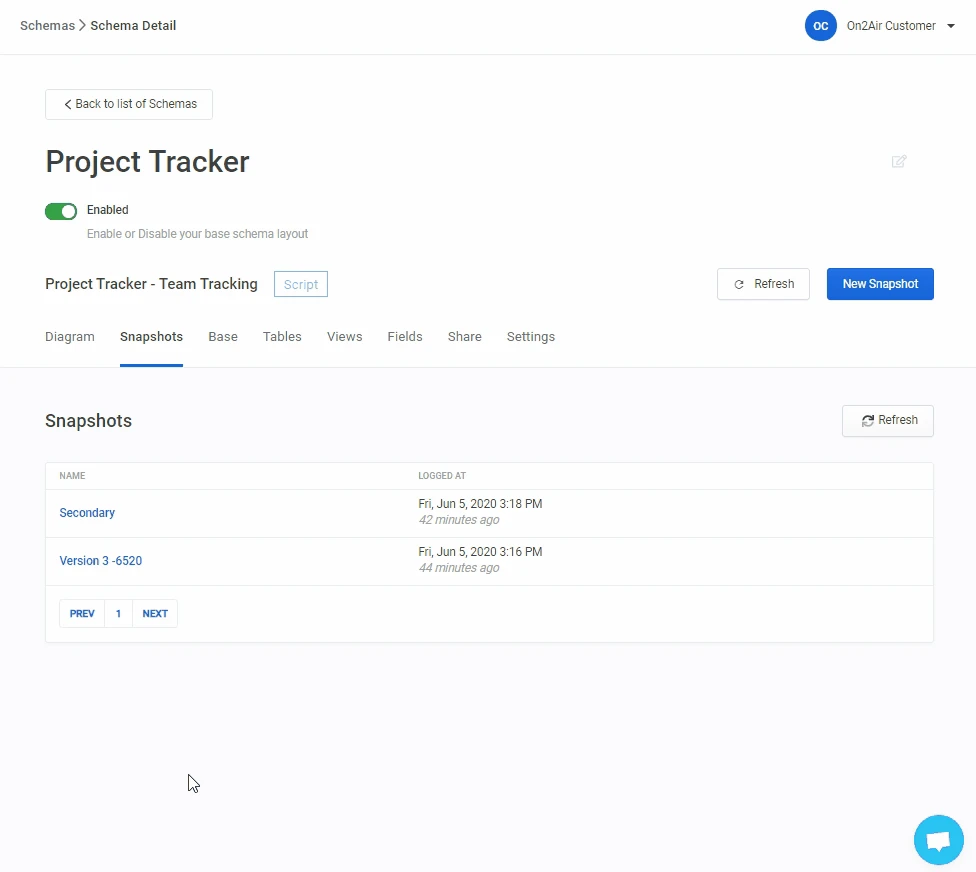

The Snapshots tab displays a history list of Schema snapshots
- Name - Name of Snapshot
- Logged At - Snapshot timestamp
When you click a Snapshot name, you will see a list of any changes made in the chosen Snapshot in the Changes tab
You will see columns containing
Type - Type of Structure - Base, Table, View, or Field Name- Name of Base, Table, View, or Field Change - Snapshot name (Initial is first snapshot)Before - Name before a change After - New name
Refresh Schema
- Click Refresh to generate any new Schema updates
Diagram in Snapshot
Click Diagram in a Snapshot History to see the Diagram at the time the Schema was captured
Share
You can share a public version of your Schema with anyone else.
Shareable - Enable (green) the share toggle to share a public link or view to your schema
You have two options to share.
Option 1

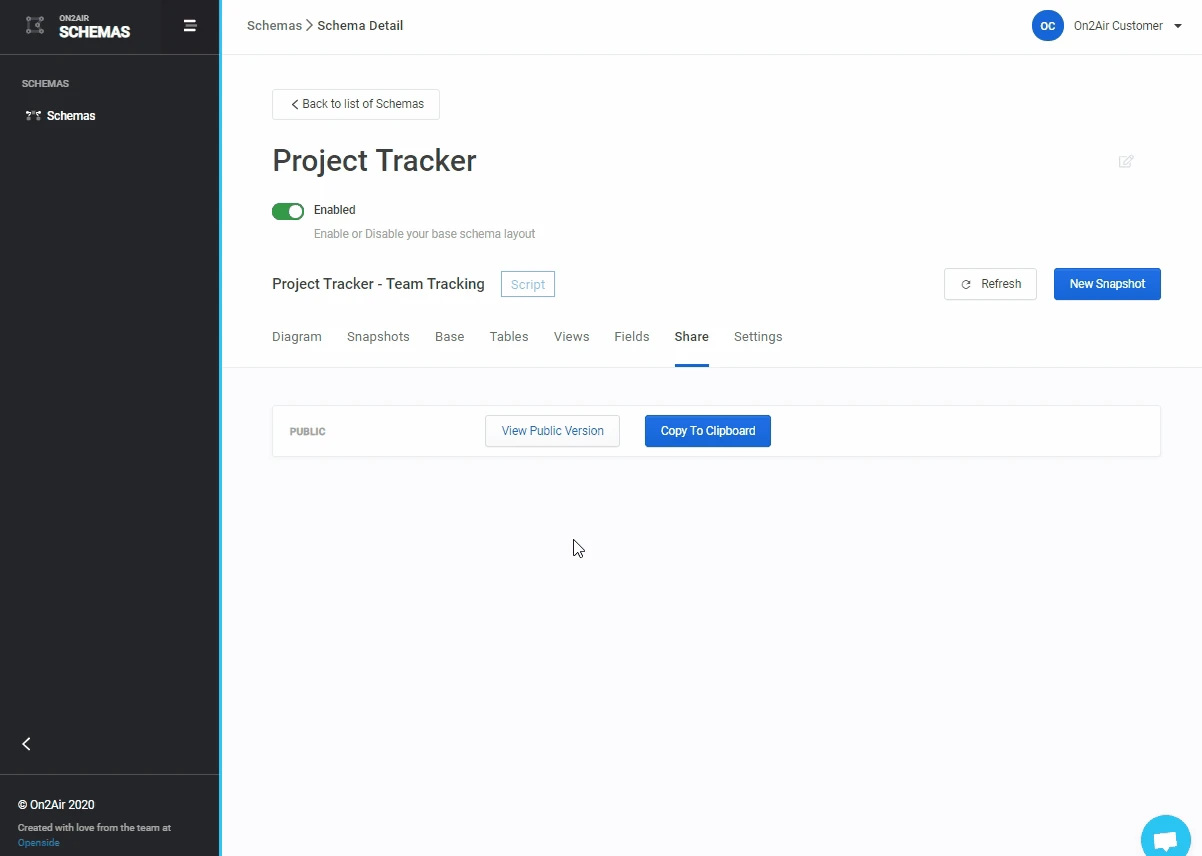

- In the Share tab, click View Public Version to view your Schema through a public URL
Option 2
- Click Copy to Clipboard to copy the public URL for your Schema to you clipboard
- Share the URL with others
Settings

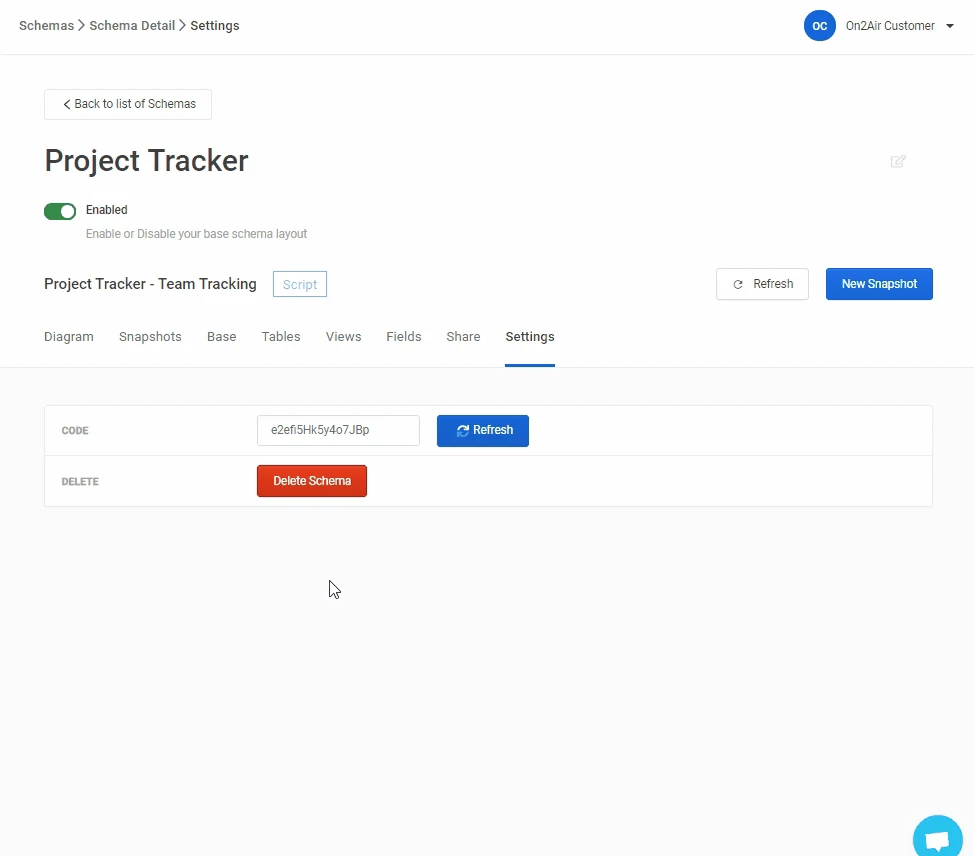

Code - A unique ID for your Schema * Click Refresh to generate a new unique ID
Delete - To delete your schema, click Delete Schema * WARNING: This action cannot be undone
Refresh - Click Refresh to generate any new Schema updates
New Snapshot - A window will open with your allowing you to click a link to your base * To generate a new snapshot, follow the steps Generate a Schema Snapshot from Airtable * This will also display the Script code that should be in your Airtable base
